Modernizing Legacy Architecture: Implementing the Repository Pattern in Java

Refactoring for Maintainability

Technical debt is inevitable, but how we manage it defines the longevity of a project. In the sistema-gestion-establecimiento-educativo project, we recently undertook a significant refactoring effort to modernize our core architecture. The goal was to decouple our data access layer from the business logic, moving away from monolithic, tightly-coupled code towards a more sustainable structure.

The Challenge of Direct Data Access

Previously, our application relied on direct database interactions scattered throughout the service layer. This led to several issues:

1. Difficulty in writing unit tests without a live database.
2. SQL queries duplicated across multiple controllers.
3. High maintenance costs when schema changes occurred.

Implementing the Repository Pattern

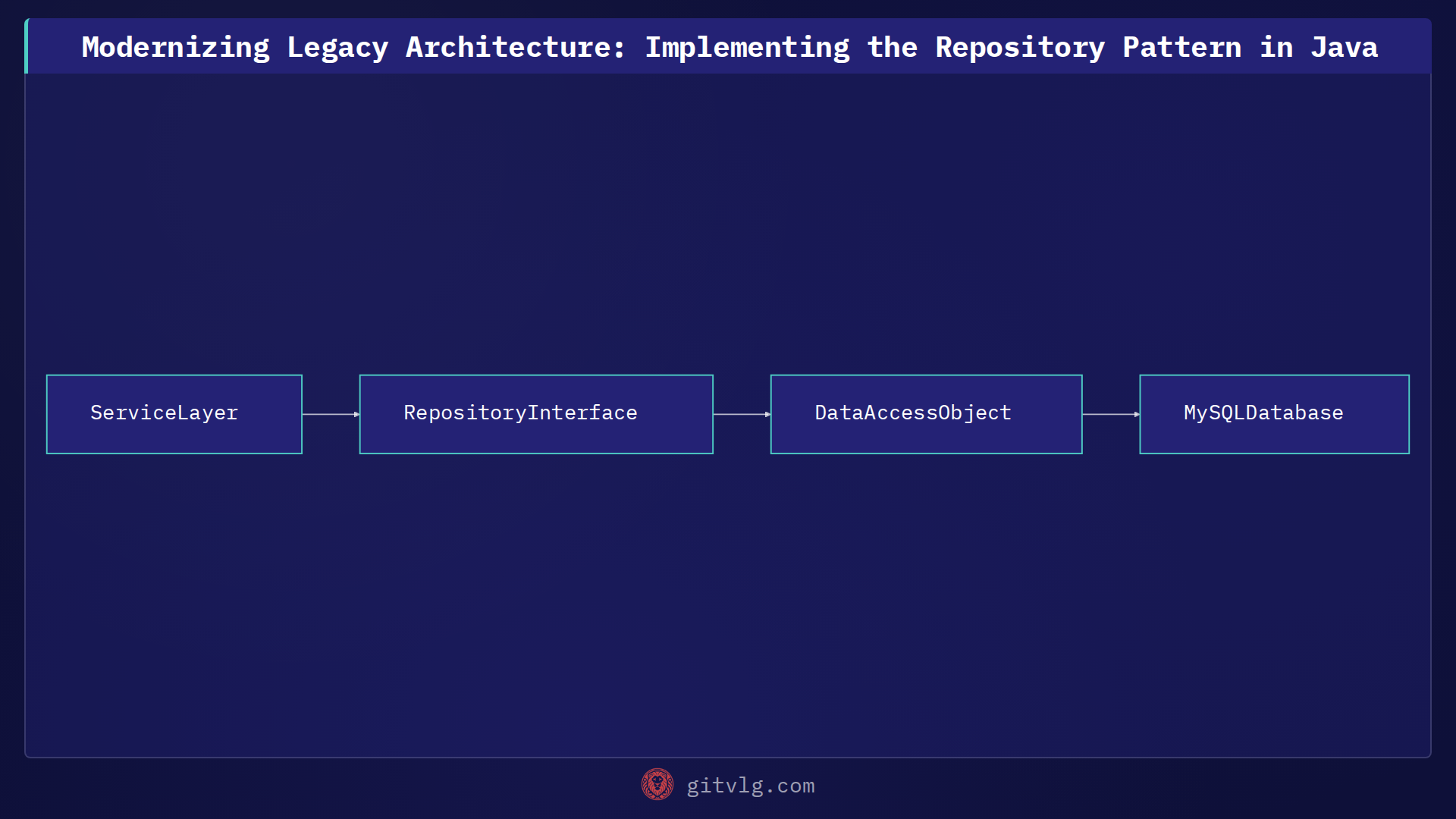

To address this, we transitioned to the Repository Pattern. By abstracting the data access logic, we created a clean separation between the database schema and the domain model. This involved moving raw SQL operations into specialized repository classes.

Here is a simplified example of how we structured our data access layer:

public class StudentRepository implements Repository<Student> {
    private final Connection connection;

    public List<Student> findAll() {
        String sql = "SELECT * FROM students";
        try (PreparedStatement stmt = connection.prepareStatement(sql)) {
            ResultSet rs = stmt.executeQuery();
            // Map result set to objects
            return mapResultSetToStudents(rs);
        }
    }
}

This change ensures that our business logic only interacts with the StudentRepository interface, remaining agnostic of the underlying MySQL storage implementation.

Improved Architecture Benefits

By leveraging Maven for dependency management and enforcing the Repository pattern, we achieved:

• Testability: We can now mock repository interfaces in unit tests.
• Consistency: Standardized query execution through repository methods.
• Maintainability: Schema updates are localized to specific repository classes.

Moving Forward

Refactoring is not a one-time event but a continuous process. For teams looking to modernize legacy systems, focus on:

1. Identifying high-churn areas of the code.
2. Abstracting data access one layer at a time.
3. Using build tools like Maven to manage dependencies cleanly.

Good architecture is about making the right choices early—but it is also about having the courage to refactor when those choices no longer serve the system's goals.
